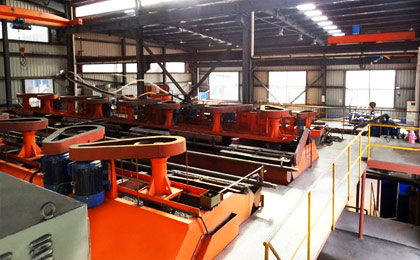

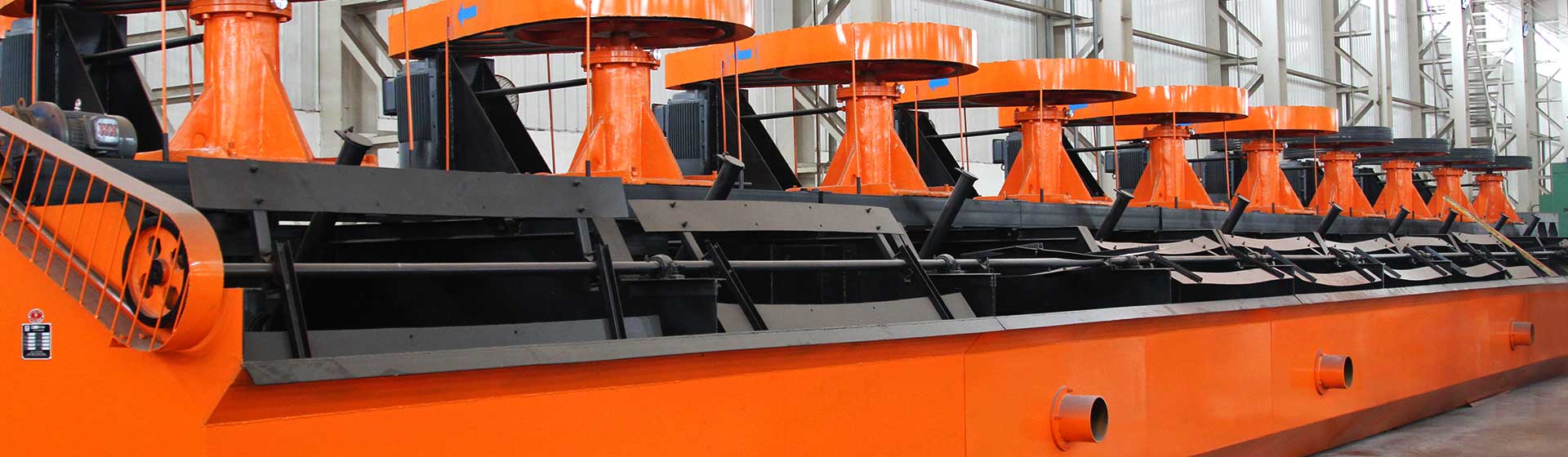

Flotation machine applies to separation of non-ferrous metal, ferrous metal, noble metal, non-metallic mine and chemical material. And flotation machine can be used in roughing, scavenging, selection or reverse flotation.
Processing Ability: 0.2–16 m³/min
Specification: Full models for sale
Large air-absorption capacity
Low energy consumption
Reasonable circulation of mineral slurry
Automatic control Easy to adjust
Optimistic structure design & Excellent performance
Mining
Chemical industry
Non-ferrous metal mine
Mineral Processing Industry
Separating of gold, silver, copper, Lead (Pb), Zinc (Zn), etc.

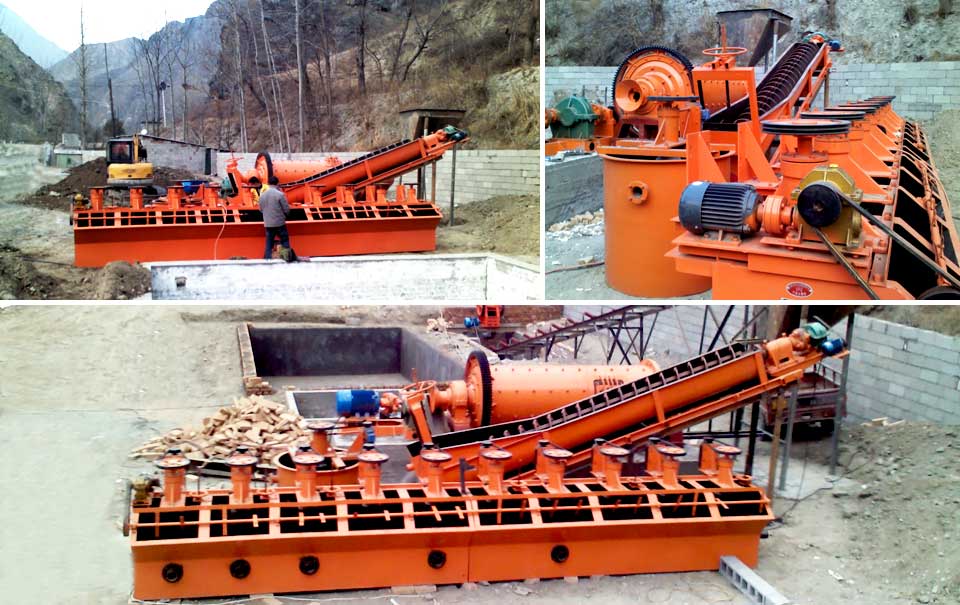

Raw Material: Copper Ore
Capacity: 150t/h
Equipment: Vibrating Feeder, Jaw Crusher, Vibrating Screen, Electromagnetism Feeder, Ball Mill, Flotation Machine, Thickener, Hydro cyclone, Blender
| Category | Model | Effective Volume (m³) |
Processing capacity | Main shaft | Loam board | Dimensions (LxWxH) (M) |
||
| Power (kw) |
Rotate speed (r/min) |
Rotate speed (r/min) |
Power (kw) |
|||||
| XJK type flotation machine | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 0.7×0.7×0.7 |
| XJK-0.62 | 0.62 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.85 | |
| XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×10 | |
| XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1.75×1.6×1.1 | |
| XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2.2×2.2×12 | |
| SF type flotation machine | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 0.7×0.7×0.75 |
| SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 0.9×0.82×0.95 | |
| SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1.1×1.1×1.1 | |
| SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1.75×1.6×1.15 | |
| SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1.85×2.05×12 | |
| SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.4 | |
| SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2.2×2.9×1.7 | |
| SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2.85×3.8×2.0 | |
| JJF type flotation machine | JJF-2 | 2 | 1-3 | 7.5 | 443 | 25 | 1.5 | 1.4×1.4×1.1 |
| JJF-4 | 4 | 2-4 | 11 | 305 | 25 | 1.5 | 1.6×2.15×1.25 | |
| JJF-8 | 8 | 4-8 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.4 | |
| JJF-10 | 10 | 5-10 | 22 | 233 | 25 | 1.5 | 2.2×2.9×1.7 | |
| JJF-16 | 16 | 5-16 | 30 | 180 | 25 | 1.5 | 2.85×3.8×1.7 | |
| JJF-20 | 20 | 5-20 | 37 | 180 | 25 | 1.5 | 2.9×3.8×20 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
